51 71 478 Removing and installing/replacing the rear left or right wheel arch trim
WARNING: This page is about a different car, the 2019 BMW X1, 2018 BMW X1, 2017 BMW X1, and 2016 BMW X1. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 2 230
NOTE:
For clarity the vehicle is only partially pictured.
Removal:

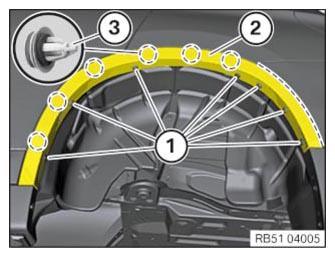

Remove the blind rivet (1).
Disengage the trim (2) from the clips (3) around the side panel.
Loosen and remove the trim (1) from the latch mechanisms on the bumper.
Installation:
NOTE:
Replace faulty clips (3).
Insert the trim (2) and engage with the clips (3).
Engage the trim (2) with the latch mechanisms on the bumper.
Install the blind rivet (1) using special tool 00 2 230 .
