11 24 571 Replace all connecting rod bearings (B48AO0)
IMPORTANT:
All crank pins are connected with the crankshaft.
Modified procedure; the bearing shell colors are the same at the top and bottom.
Modified procedure; the bearing shell colors are the same at the top and bottom.
Necessary preliminary tasks:
- Remove all PISTONS .
Install new connecting rod bearing shells.

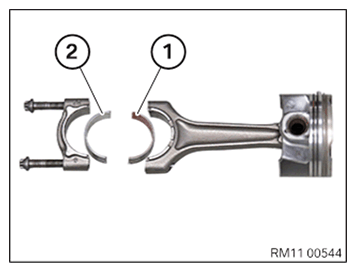

Insert connecting rod bearing shells (1 and 2).
Required follow-up work:
- Install all PISTONS
- Assemble engine
