11 31... Notes for checking and adjusting the timing (B37, B38, B47, B48)
Special tools required:
- 2 288 380
IMPORTANT:
Risk of damage to engine.
The notes for checking and adjusting the timing must be strictly observed!
If the crankshaft is fixed properly, it is not possible to turn the engine forwards or backwards on the vibration damper.
The notes for checking and adjusting the timing must be strictly observed!
If the crankshaft is fixed properly, it is not possible to turn the engine forwards or backwards on the vibration damper.
Dimension (Y) = 66 mm.
Insert the special tool 2 288 380 up to dimension (Y) into the dowel hole.

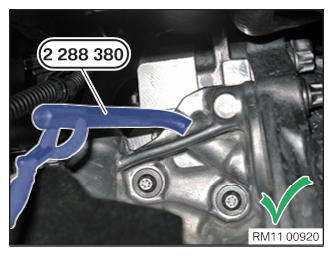

Special tool 2 288 380 correctly positioned.
The engine is located at the first cylinder at TDC.

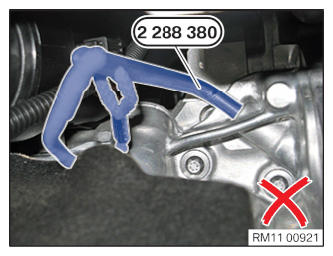

Special tool 2 288 380 incorrectly positioned.
The TDC setting of the first cylinder has not been achieved.
