34 52 525 Replacing one front pulse sensor

Necessary preliminary tasks:

• Remove the front WHEEL .
• Partially detach FRONT LEFT WHEEL ARCH PANEL .

Removal:

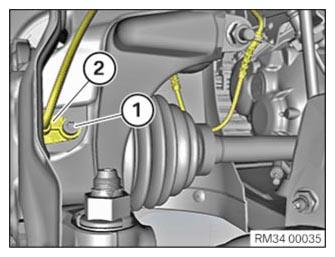

Release screw (1) and remove pulse sensor (2).

Remove cable from bracket on spring strut.

Courtesy of BMW OF NORTH AMERICA, INC.

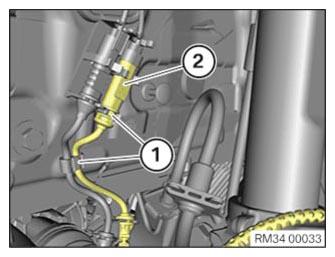

Disengage cable from holders (1).

Disconnect plug connection (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean bore hole for pulse sensor and grease with Staburags NBU 12/K lubricating grease (refer to: BRAKES - OPERATING FLUIDS ).

Courtesy of BMW OF NORTH AMERICA, INC.

Attach brake pad wear sensor in brackets (1).

Connect plug connection (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Install pulse sensor (2).

Insert screw (1) and tighten down.

Tightening torque, refer to: 34 51 4AZ .

Install cable in bracket on spring strut.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install FRONT LEFT WHEEL ARCH PANEL
• Install the WHEEL .
