34 52 516 Removing and installing/replacing the DSC control unit

Attention!

Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary work:

• Remove the HYDRAULIC UNIT .

Removal:

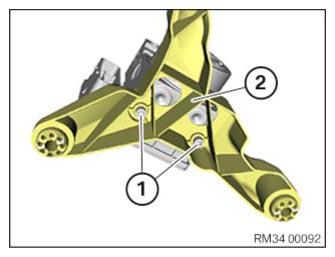

Release screws (1) and remove holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Risk of damage to the contacts when removing and installing the hydraulic control unit.

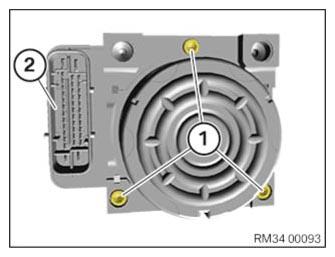

Release screws (1) and carefully detach control unit (2) towards front.

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

Attention!

Cleaning with compressed air, chemical solvents and sharp-edged objects is not permitted.

Do not touch pressure sensor contacts (2) with your fingers or clean the contacts.

If necessary, clean sealing surface (1) with a plastic scraper or a fluff-free cloth.

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

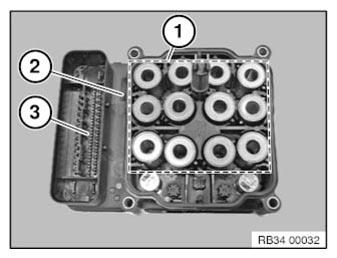

Do not touch, clean or readjust valve coils (1) and pressure sensor contact springs with your fingers.

Check gasket (2) for damage. If damaged, replace DSC control unit (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

Make sure screws are inserted evenly and DSC control unit rests on hydraulic unit.

Replace screws.

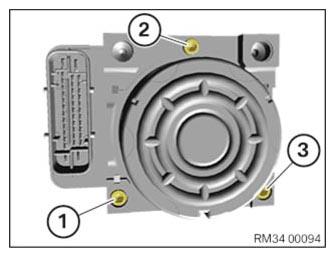

Observe tightening sequence (1-3).

Tightening torque, refer to: 34 51 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Attach holder (2).

Insert screws (1) and tighten.

Tightening torque, refer to: 34 51 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install the HYDRAULIC UNIT .

Replacement:

Carry out PROGRAMMING/ENCODING
