34 33 280 Removing and installing brake servo brake vacuum sensor

Necessary preliminary tasks:

• Read and comply with GENERAL INFORMATION .
• Remove the BATTERY .

Removal:

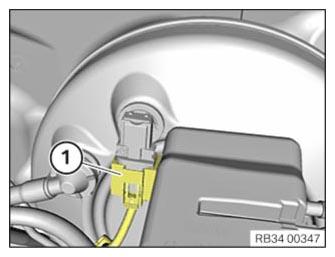

Disconnect plug connection (1) on the brake vacuum sensor.

Courtesy of BMW OF NORTH AMERICA, INC.

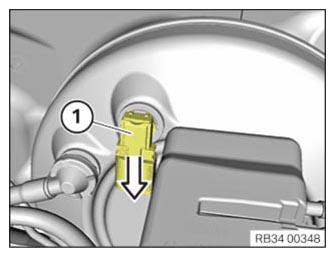

Carefully pull out brake vacuum sensor (1) from brake booster in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

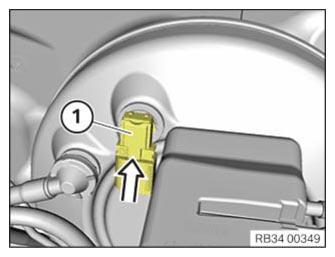

Install brake vacuum sensor (1) in brake booster in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Position plug connection (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install the BATTERY .
