34 32 980 Replacing rear left or right brake hose
Necessary preliminary tasks:
- Read and comply with GENERAL INFORMATION .
Removal:

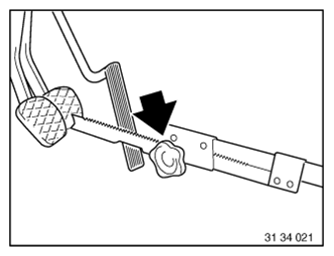

Press brake pedal down to floor and secure with pedal support.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.
Attention!

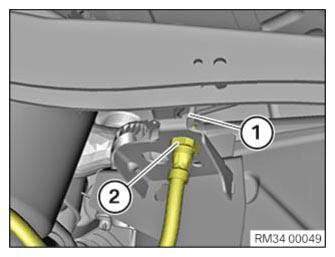

Grip brake hose at square head (2) so that connecting piece cannot rotate in retaining bracket.
Disconnect brake hose from brake line (1).

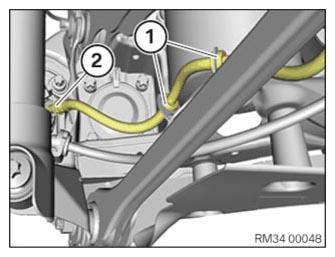

Disengage brake hose from brackets (1).
Detach brake hose (2) from brake caliper.
Installation:
Attention!
Make sure that the brake hose is routed correctly!
Mount brake hose (2) on brake caliper.
Attention!
First tighten brake hose on brake caliper.
Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.
Tighten down brake hose (2).
Tightening torque, refer to: 34 32 3AZ .
Insert brake hose in brackets (1).
Attention!
Grip brake hose at square head (2) so that connecting piece cannot rotate in retaining bracket.
Mount brake hose on brake line (1) and tighten down.
Tightening torque, refer to: 34 32 1AZ .
Remove pedal support.
Required follow-up work:
- Bleed the BRAKE SYSTEM .
