34 11 280 Removing and installing/replacing front left protective plate

Necessary preliminary tasks:

• Remove the FRONT BRAKE DISC .

Removal:

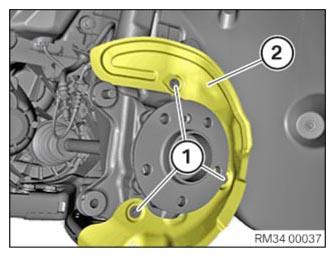

Release screws (1) and remove brake guard plate (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Mounting the brake guard plate (2).

Insert screws (1) and tighten.

Tightening torque, refer to: 34 11 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install the FRONT BRAKE DISC .
