63 31... Remove and install/replace interior light on left or right

Special tools required:

• 64 1 020

Removal:

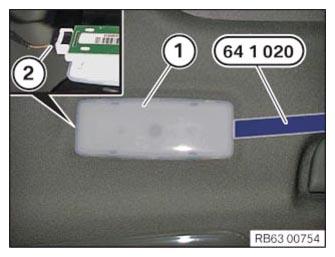

Take out the interior light (1) using special tool 64 1 020  .

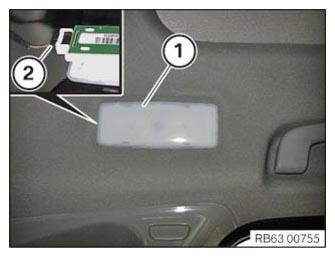

Unlock and disconnect connector (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

• If necessary, REMOUNT BULB , check BULB TYPE

Installation:

Connect connector (2) and fit the interior light (1) into the headlining.

Courtesy of BMW OF NORTH AMERICA, INC.
