63 31 150 Removing and installing/replacing glovebox light

Attention!

FOLLOW NOTES FOR HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

Removal:

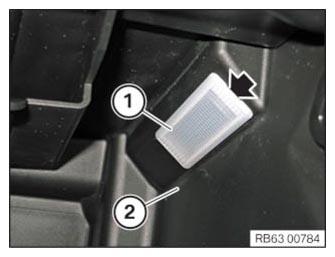

Lever out glove box light (1) of glove box (2).

Unlock and disconnect associated connector.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

• If necessary, REMOUNT BULB , check BULB TYPE

Installation:

Connect associated connector.

Join glove box light (1) in glove box (2).

Courtesy of BMW OF NORTH AMERICA, INC.
