63 26 000 Removing and installing/replacing left or right number/license plate light

Special tools required:

WARNING: Follow instructions for handling light bulbs (EXTERIOR LIGHTS) .

Removal:

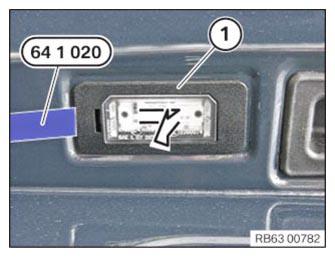

Release number plate light (1) from tailgate in direction of arrow using special tool 64 1 020 .

Disconnect associated connector and remove number plate light (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

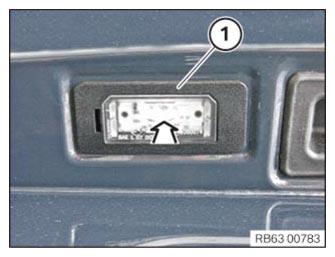

Connect the corresponding connector with the number plate light (1).

Join the number plate light (1) in the tailgate in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.
