63 17 070 Removing and installing/replacing left fog light

Removal:

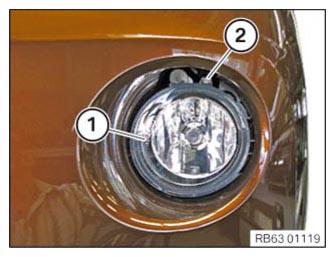

Disengage the fog light (1) from the metal clamp (2).

Feed out fog light (1) forwards.

Unlock and disconnect associated connector.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect associated connector.

Insert the fog light (1).

Press the fog light backwards until the metal clamp (2) engages.

Courtesy of BMW OF NORTH AMERICA, INC.

On replacement of fog light or bumper panel at front:

If necessary, remount bulb(s).

Adjust the FRONT FOG LIGHTS .
