6312... US version: Check/set horizon blocking after adjusting the headlight

Special tools:

• 2 467 369

Note:

Before installing the new headlight, ensure that the adjustment screw for the horizontal adjustment of the headlight is protected with a plug from being manipulated.

Courtesy of BMW OF NORTH AMERICA, INC.

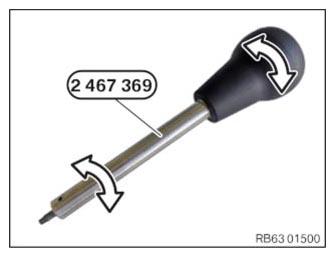

Special tool 2 467 369  has a freewheel for fitting the horizontal lock without damaging it or applying any torque

(Special tool available temporarily delayed until Q1 2019)

Courtesy of BMW OF NORTH AMERICA, INC.

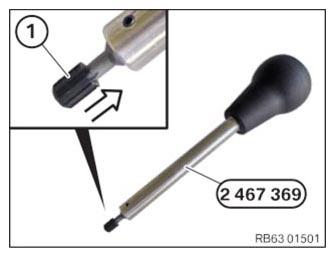

Carefully insert the plug (1) for blocking the horizontal adjustment on the special tool 2 467 369  without damaging it.

Courtesy of BMW OF NORTH AMERICA, INC.

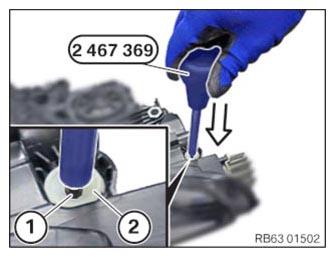

Push the plug (1) with the special tool 2 467 369  into the adjustment screw for horizontal adjustment (2) without damaging it  (schematic illustration)
