63 21 035 Replacing bulb holder for left or right rear light (in tailgate)

WARNING: Follow instructions for handling light bulbs (EXTERIOR LIGHTS) .

Removal:

Unclip cover (1) outwards from tailgate trim panel.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect corresponding connector as necessary.

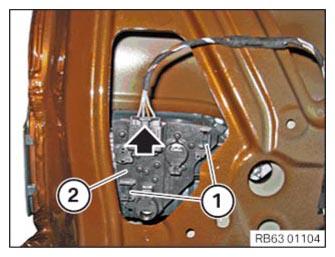

Press the locks (1) together to disengage them.

Remove the bulb socket (2) from the rear light.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

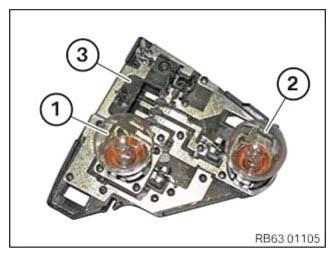

Remount the bulbs (1; 2).

Do this by carefully pressing bulb (1; 2) into bulb socket (3) and turning anti-clockwise.

Then pull bulb (1; 2) out of bulb socket (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Insert bulb (1; 2) into the new bulb socket (4).

Do this by carefully pressing bulb (1; 2) into bulb socket (3) and turning fully clockwise.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert bulb holder (2) in rear light.

Connect corresponding connector as necessary.

NOTE: Ensure bulb holder (2) is correctly locked (1) and fitted in rear light.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs on trim (1) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Clip cover (1) into tailgate trim panel from outside to inside.

Installation note:

Make sure trim (1) is correctly fitted.

Courtesy of BMW OF NORTH AMERICA, INC.
