32 31 003 Replacing the steering column shroud upper section

Move steering column in "bottom" and "extended" position.

Push steering column shroud (1) upwards at rear and unclip.

Repeat process on right side.

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip steering column gap cover (1) out of steering column shroud upper section.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

To prevent rolling out of the gap cover, the guide rib (1) on the steering column shroud upper section must be trimmed in F48 vehicles up to 04/2016.

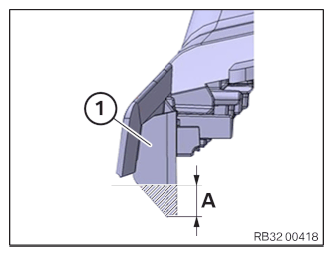

1st trim:

Cut off the shaded area of the guide rib (1).

Dimension A = approx. 5 mm

Courtesy of BMW OF NORTH AMERICA, INC.

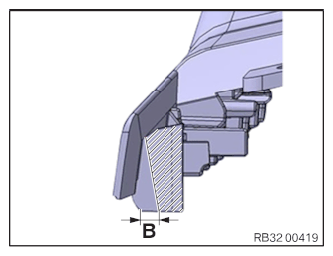

2nd trim:

Cut off the shaded area of the guide rib.

Dimension B = approx. 3 mm

Courtesy of BMW OF NORTH AMERICA, INC.
