61 71 061 Replace the washer fluid reservoir for the window washer system

Necessary preliminary work:

Remove FRONT WHEEL ARCH COVER ON RIGHT

Removal:

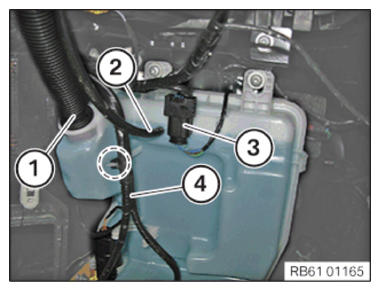

Disconnect filler hose (1).

Detach vent hose (2).

Unclip the connector (3) from the washer fluid reservoir for the window washer system.

Unclip the hose pipe (4) from the washer fluid reservoir for the window washer system.

G12668365

Courtesy of BMW OF NORTH AMERICA, INC.

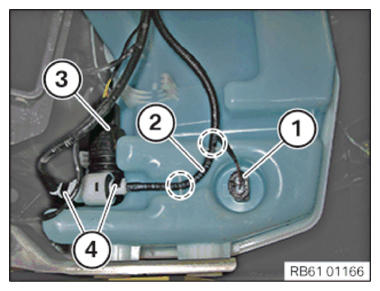

NOTE: If necessary, catch escaping washer fluid.
Unlock and disconnect the connector (1) on the washer fluid level switch.
Unclip the hose pipe (2) from the washer fluid reservoir for the window washer system.
Unlock the connector (3) on the windscreen washer pump and disconnect it.
Unlock and disconnect the hose pipes (4) from the windscreen washer pump.

G12668366

Courtesy of BMW OF NORTH AMERICA, INC.

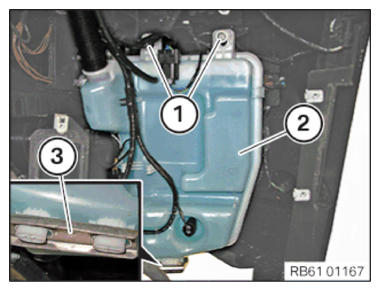

Release screws (1).

Feed out washer fluid reservoir for window washer system (2) upwards from mounting (3) and remove.

G12668367

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in washer fluid reservoir for window washer system (2) into mounting (3).

Tighten down screws (1).

Tightening torque 61 66 1AZ .

G12668367

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the hose pipes (4) to the windscreen washer pump.

Connect the connector (3) to the windscreen washer pump.

Clip in the hose pipe (2) at the washer fluid reservoir for the window washer system.

Connect the connector (1) to the washer fluid level switch.

NOTE: Fill washer fluid reservoir for windscreen washer system if necessary.

G12668366

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in the hose pipe (4) at the washer fluid reservoir for the window washer system.

Clip in the connector (3) at the washer fluid reservoir for the window washer system.

Connect vent hose (2).

Connect filler hose (1).

G12668365

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

Install FRONT RIGHT WHEEL ARCH COVER
