61 31 037 Removing and installing/replacing light control unit

NOTE: When carrying out repair work on trim panel components, make sure that sensitive surfaces are not scratched or damaged.

Removal:

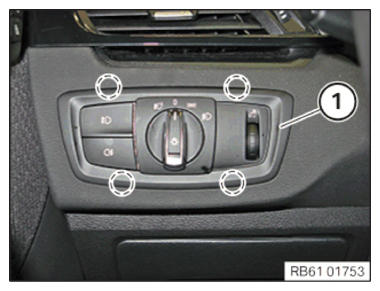

NOTE: The light operating unit (1) is locked in the in marked area.

Unclip the light operating unit (1).

Unlock and disconnect associated connector.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

The metal clamps on the light operating unit (1) must not be damaged or missing.

Connect associated connector.

Clip in the light operating unit (1).

Courtesy of BMW OF NORTH AMERICA, INC.
