61 31 014 Removing and installing/replacing Start/Stop switch

Special tools required:

Removal:

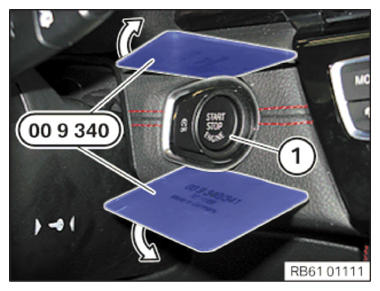

Lift out start/stop button (1) using special tool 00 9 340.

Courtesy of BMW OF NORTH AMERICA, INC.

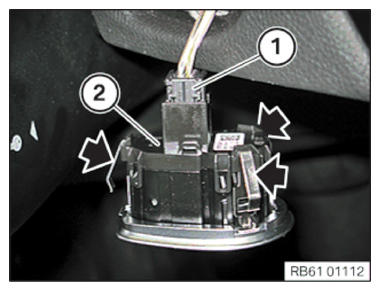

Unlock and disconnect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: The retaining clips on the start/stop button (2) must not be damaged or missing.

Connect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

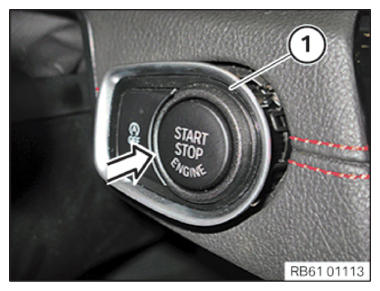

Join start/stop button (1) with instrument panel trim.

Courtesy of BMW OF NORTH AMERICA, INC.
