65 50 057 Removing and installing/replacing Central Information Display (CID)

Attention!

Read and comply with NOTES on protection against electrostatic damage (ESD protection).

Necessary preliminary work:

• Remove the DECORATIVE STRIP ON DASHBOARD ON RIGHT

Removal:

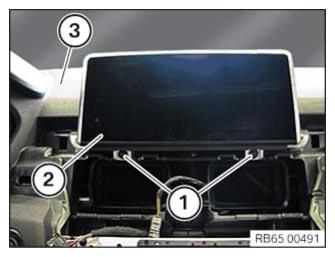

Release screws (1).

Remove the CID (2) upwards out of the instrument panel (3).

Courtesy of BMW OF NORTH AMERICA, INC.

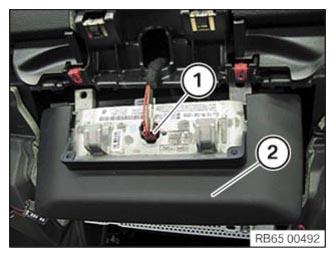

Unlock and disconnect the connector (1).

Remove CID (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Plug in the connector (1) to the CID (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in the CID (2) downwards into the instrument panel (3).

Make sure that the CID (2) is correctly seated.

Tighten down screws (1).

Tightening torque, refer to: 65 50 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install the DECORATIVE STRIP ON THE RIGHT SIDE OF THE INSTRUMENT PANEL

Central information display to dashboard
Screw	tightening torque  1.8Nm
