51 45... Removing and installing/replacing side panel on dashboard on left or right
WARNING: This page is about a different car, the 2019 BMW X1, 2018 BMW X1, 2017 BMW X1, and 2016 BMW X1. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 327
When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).
Removal:

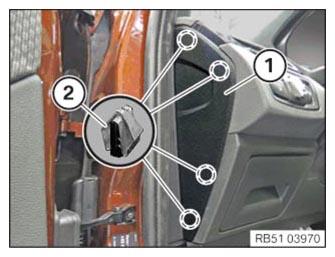

Unclip side panel (1) with special tool 00 9 327 from clips (2) and feed out tilted backwards.
If necessary, unlock and disconnect the plug connection on the switch for the front passenger airbag deactivation.
Installation:
For replacement on passenger's side:
REMOUNT SWITCH FOR FRONT PASSENGER AIRBAG DEACTIVATION .
NOTE:
Clamps (2) must not be damaged or missing.
If necessary, connect the plug connection on the switch for front passenger airbag deactivation.
Guide side panel (1) in at angle toward front and clip in clamps (2).
