Removing the cover for the water channel
Removing the cover for the water channel

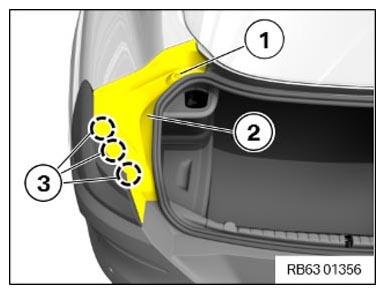

Release clip (1) using a suitable special tool from the set of special tools
0 493 752 (00 9 329)
.
Loosen the cover (2) for the water channel from the detents (3) using a suitable tool and remove it upwards.
