Remove the water guide at the tail light
Remove the water guide at the tail light

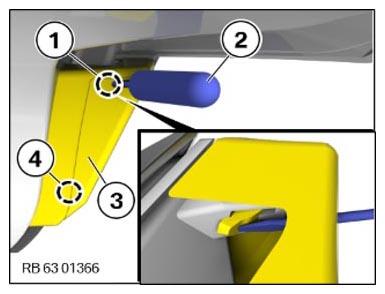

Unlock the detent (1) of the water guide at the tail light (3) with the aid of a tool (screwdriver) (2).
Release the water guide at the tail light (3) from the detents (1) and (4) and remove.
Courtesy of BMW OF NORTH AMERICA, INC.
