Remove the side panel on the right dashboard
NOTE:
Description is for left component only. Procedure on the right side is identical.

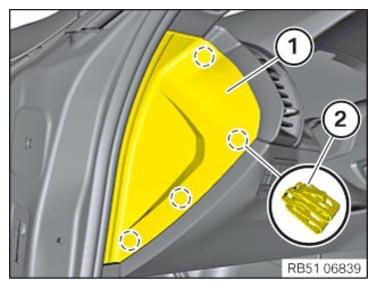

Remove the side cover on the dashboard
- Unclip and feed the side cover (1) towards the outer out of the clamps (2).
