Remove tailgate trim panel

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Unclip the clips (1) in the direction of the arrow using the special tool 0 490 534 (00 9 317) .

Courtesy of BMW OF NORTH AMERICA, INC.

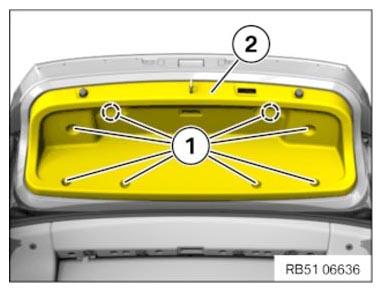

Remove expanding rivets (1) from the tailgate trim panel (2).
Remove tailgate trim panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

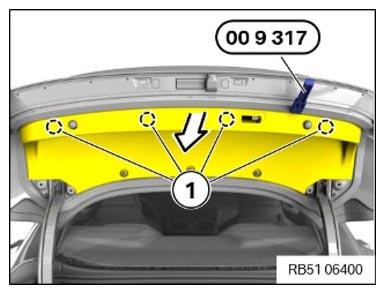

Unclip the clips (1) in the direction of the arrow using the special tool 0 490 534 (00 9 317) .

Courtesy of BMW OF NORTH AMERICA, INC.

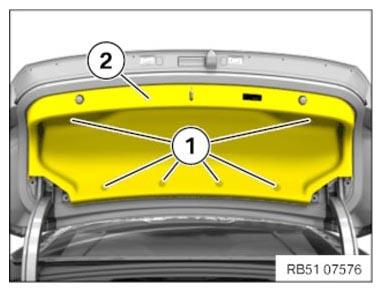

Loosen the expanding rivet (1).
Remove tailgate trim panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.
