Partially removing the bumper trim at rear
Partially removing the bumper trim at rear

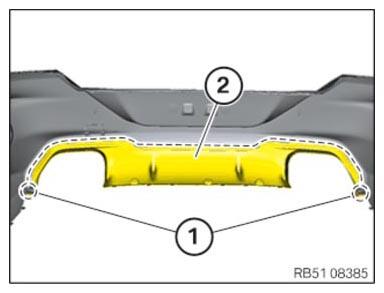

Loosen screws (1).
Release and remove the rear bumper trim (2) from the detents, starting at side along the dashed lines.
Courtesy of BMW OF NORTH AMERICA, INC.
