Install right door sill trim panel

NOTE: Description is for left component only. Procedure on the right side is identical.

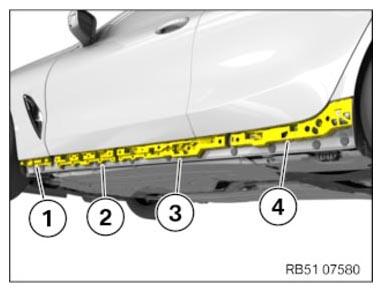

Check retaining strips (1) to (4) for damage and, if necessary, replace them.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

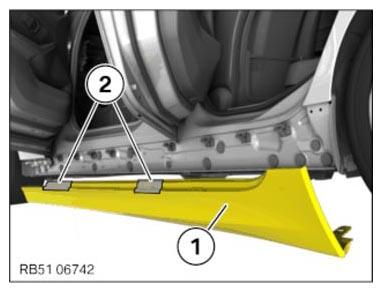

Stick door sill trim panel (1) in areas (2) with adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.
Position door sill trim panel.

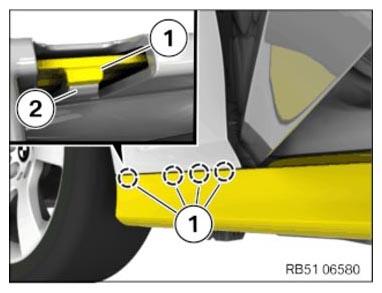

Clip the door sill trim panel into the front retaining strip (2) with detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.

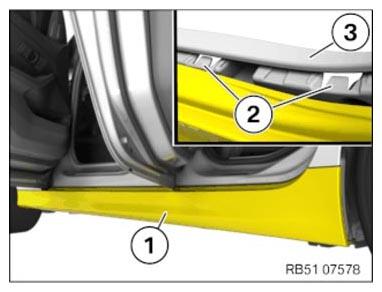

Clip door sill trim panel (1) continuously to the rear into detents (2) of retaining strip (3).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Tighten nut (2).

TIGHTENING TORQUE SPECIFICATION

Undershield to door sill trim panel
Plastic nut Coarse thread	tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

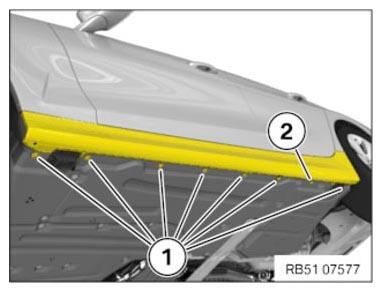

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATION

Undershield to door sill trim panel
Hexagon screw for thermoplastic	tightening torque	3 Nm

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Courtesy of BMW OF NORTH AMERICA, INC.
