If installed: Removing lane change warning sensor
If installed: Removing lane change warning sensor

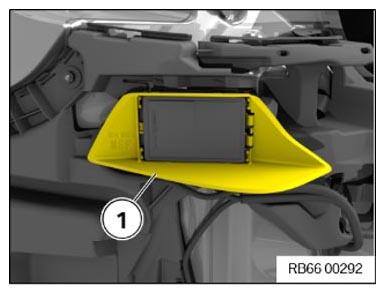

Unlock and remove the funnel (1) at the snap-in lugs.
Courtesy of BMW OF NORTH AMERICA, INC.

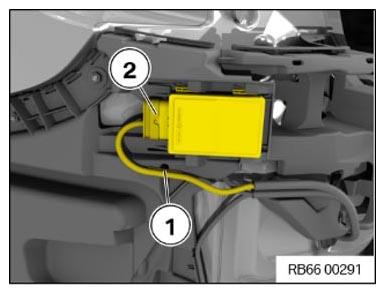

Unclip mounting clip (1).
Unlock plug connection (2) and disconnect.
Courtesy of BMW OF NORTH AMERICA, INC.

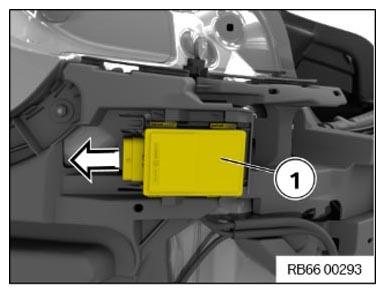

Release detents and remove the lane change warning sensor (1) in the direction of the arrow.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
