Removing the side air duct
NOTE:
Procedure shows left component only. Procedure on the right side is identical.

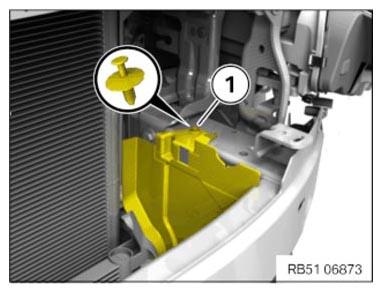

- Loosen expanding rivet (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

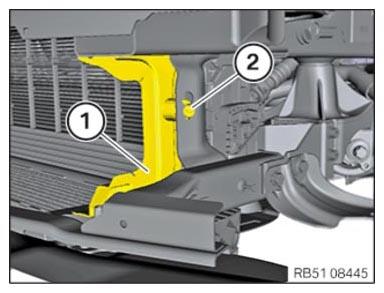

- Detach the side air duct (1) upwards from the guide (2).
- Guide the side air duct (1) out downwards and remove.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
