Removing the left and right fanfare horn
NOTE:
Procedure shows left component only. Procedure on the right side is identical.

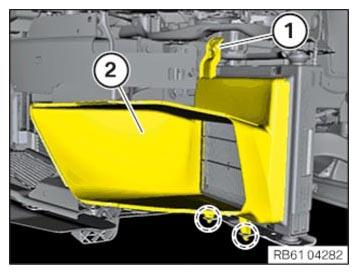

If installed: Removing air duct for the radiator
- Loosen screw (1).
- Feed air duct (2) upwards out of the guides.

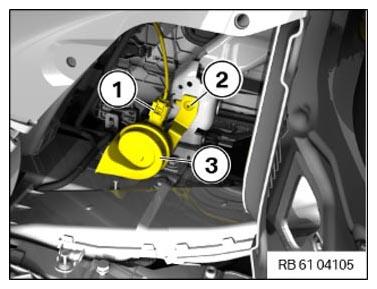

- Unlock plug connection (1) and disconnect.
- Drill out blind rivet (2) and remove the fanfare (3) with the bracket.
