Remove left and right bumper cover side frames

NOTE: Procedure shows left component only. Procedure on the right side is identical.

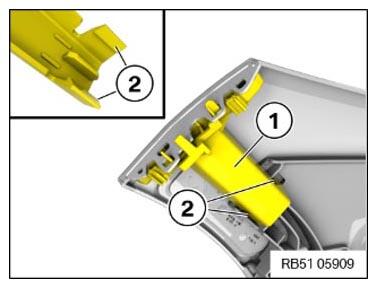

Detach the bumper guide (1) with the detents (2) and remove them towards the bottom.

Courtesy of BMW OF NORTH AMERICA, INC.

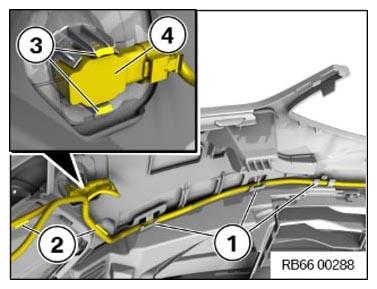

Release wiring harness from the holders (1).
Release wiring harness with the holders (2).
Unlock the detents (3) and remove the ultrasonic sensor (4) to the top.
Ultrasonic sensor remains plugged in on the wiring harness.

Courtesy of BMW OF NORTH AMERICA, INC.

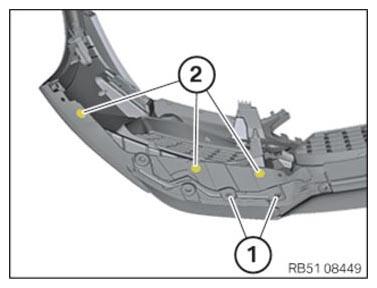

Loosen screws (1).
Release the expanding rivet (2).

Courtesy of BMW OF NORTH AMERICA, INC.

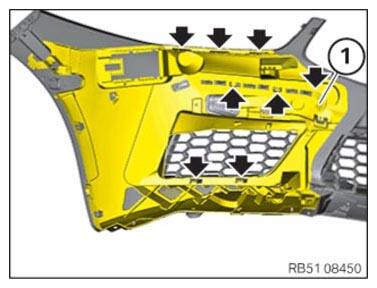

Detach the wiring harness from the holder on the frame (1) of the bumper cover.
Release and remove the frame (1) at the detents (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
