Removing the output shafts

Remove left output shaft

NOTE: TECHNICAL INFORMATION
The radial shaft sealing ring must be replaced each time the output shaft is removed.

Secure output shaft (1) against falling out.

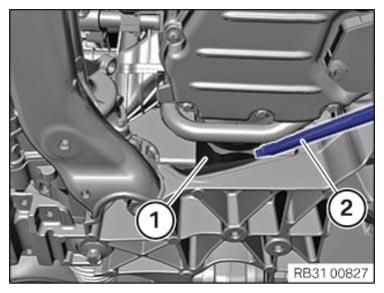

Position the aluminum drift (2) on the output shaft (1).
Knock out the output shaft (1) from the front differential with an aluminum mandrel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

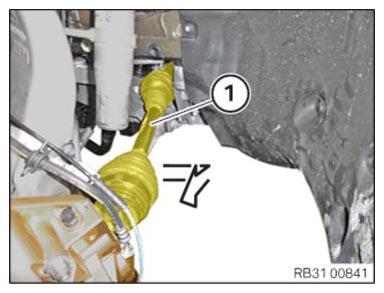

Remove driven shaft (1) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove right output shaft

NOTE: TECHNICAL INFORMATION
The radial shaft sealing ring must be replaced each time the output shaft is removed.

Courtesy of BMW OF NORTH AMERICA, INC.

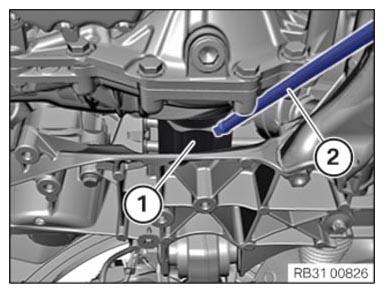

NOTE: Description is for left component only.
Procedure on the right side is identical.

Courtesy of BMW OF NORTH AMERICA, INC.
