Remove fuel filler pipe

Preliminary work

• Refer to SUCTIONING THE FUEL TANK .
• Refer to REMOVING THE REAR RIGHT WHEEL .
• Refer to REMOVING REAR WHEEL ARCH COVER .
• Refer to REMOVING THE TANK COVER .

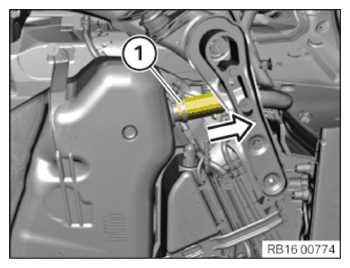

• Loosen hose clamp (1).
• Detach filling hose from fuel tank in arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

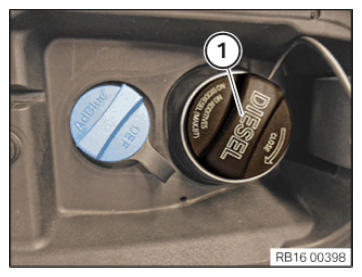

• Open sealing cap (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

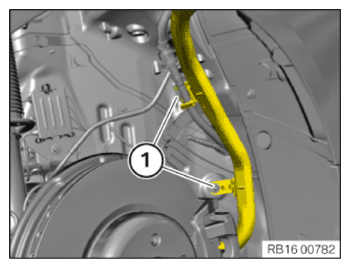

• Loosen nuts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

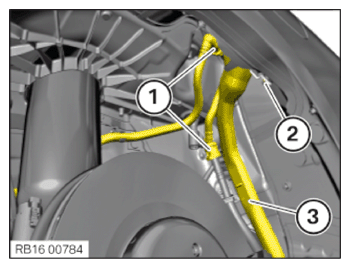

• Unlock and disconnect the snap fasteners (1).
• Loosen nut (2).
• Detach and remove the fuel filler pipe (3) from the brackets.

Courtesy of BMW OF NORTH AMERICA, INC.
