Body Equipment -- Repair (F91, F92 & F93) (1 Of 2)
>>
51 16 Mirrors, Consoles, Interior Trim
>>
51 16 166 Replacing center console
>>
Installing the front interior antenna

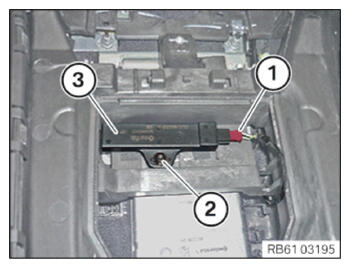

Installing the front interior antenna
Position the interior antenna
(3)
and tighten the Screw
(2)
.
TIGHTENING TORQUE SPECIFICATION
Interior antenna
Screw
Tightening torque
2.3 Nm
Connect plug
(1)
.
Courtesy of BMW OF NORTH AMERICA, INC.
