When replacing the rear center console trim: Remount installed parts

Preliminary work

• Refer to REMOVING THE REAR CENTER CONSOLE TRIM .

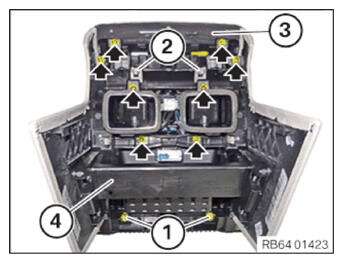

Removing the trim for the ventilation grille in the rear

• Release the screws (arrows).
• Release detents (1)  and (2)  .
• Remove the trim (3)  for the ventilation grille in the rear from the rear center console trim (4)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the trim for the ventilation grille in the rear

• Position trim (3)  for the ventilation grille in the rear on the rear center console trim (4)  and position it correctly.
• Engage detents (1)  and (2)  .
• Replace the bolts (arrows).

  Parts:  Screws

• Tighten screws (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
