Installing the rear bumper trim

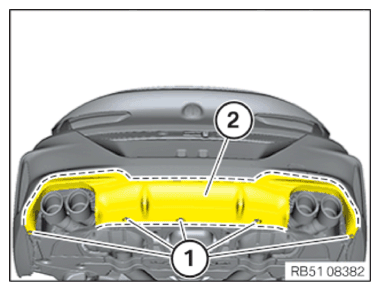

- Check if all the detents of the rear bumper trim (2) are present and damaged and, if necessary, replace the rear bumper trim (2) .
- Clip the rear bumper trim (2) into the detents along the dotted lines.
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATION
| Bumper trim, rear | ||
|---|---|---|
| Hexagon screw | tightening torque | 2.6 Nm |
