Install the illuminated front sill trim

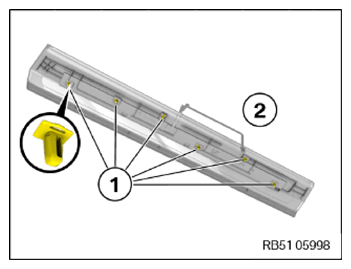

• Check whether the clips (1)  on the front illuminated sill trim (2)  are missing or are damaged, replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

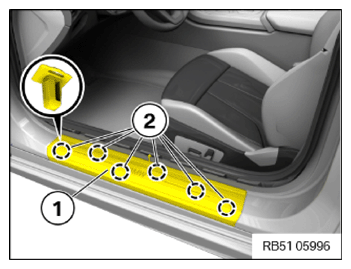

• Position the front illuminated sill trim (1)  and feed in the cable.
• Clip in the front illuminated sill trim (1)  with the clips (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

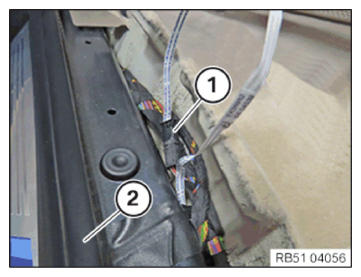

• Connect plug (1)  .
• Mount the edge protection seal (2)  in area of the cable.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
