Removing The Tail Panel
NOTE:
Perform the steps on the left and right side.

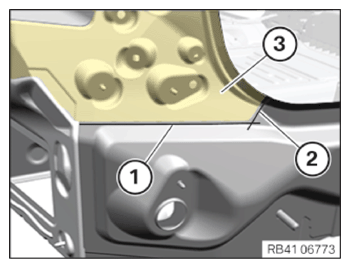

- Carry out rough cuts (1)
and (2)
immediately below the rear light holder (3)
.

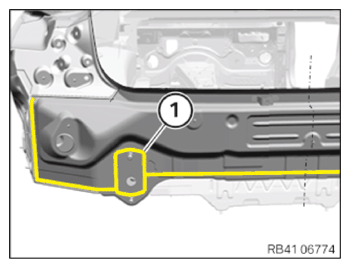

- Open welded connections in area (1)
.
- Continue rough cut (1) coming from the outer side to the inside in accordance with the illustration.
- Carry out rough cut (2) in accordance with the illustration and remove the tail panel.

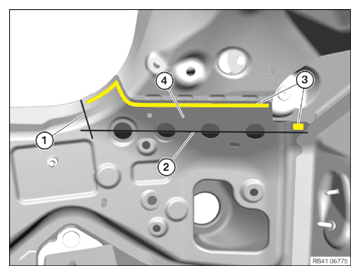

- Release welded connections in areas (3)
and remove section (4)
.

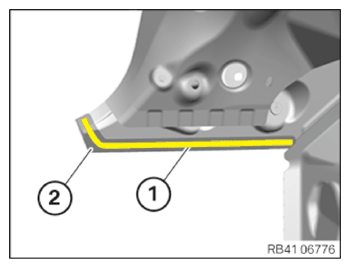

- Release the welded connections in the area (1) and remove the section (2) .
