Removing Tail Panel Outer Section

NOTE: Perform the steps on the left and right side.

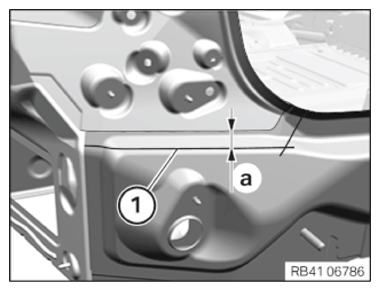

Mark severance cut (1) in accordance with dimension and disconnect. Thereby disconnect only the outer panel.
Dimension a = 15 mm below the component edge of tail light stand.
Install new part in area of severance cut.

Courtesy of BMW OF NORTH AMERICA, INC.

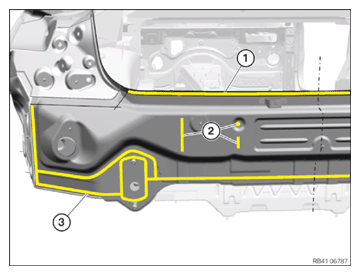

Open the welded connections in areas (1) to (3) and remove the tail panel outer section.

Courtesy of BMW OF NORTH AMERICA, INC.
