Removing The Outer Section Of The A-Pillar
- Mark and carry out the separating cut (1)
as per dimension a. Thereby disconnect only the outer panel.
Dimension a = 30 mm from the center of the hole of Ø 20 mm.
- Mark and carry out the separating cut (1)
as per dimension a. Thereby disconnect only the outer panel.
Dimension a = 150 mm.

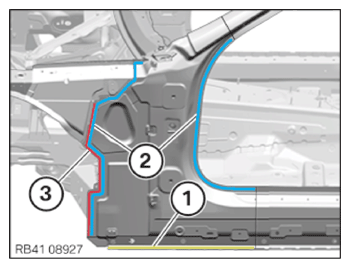

- Open welded connections in area (2)
.NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Releasing bonded connections - Release the spot-welded adhesive joints in area (3)
.
- Open welded connections in area (1)
.NOTE: RISK OF DAMAGE
Damage to bonded connection .
Influence of heat that is too large leads to damage on bonded connections lying on the beading or below .- Warm bonded connection only for a short time, maximum up to 120°C.
- Open spot-welded adhesive joints in areas (2)
.
Do not damage the bonded connection between the second and third panel in area (3) !
- Release the spot-welded adhesive joints in area (1) .
- Release and remove the A-pillar outer part from the cavity sealing (2) .
