Removal Of The Luggage Compartment Center Floor Piece

NOTE: Perform the steps on the left and right side.

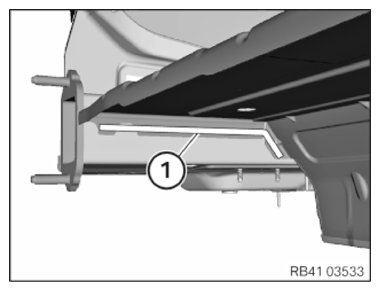

Open welded connections in area (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

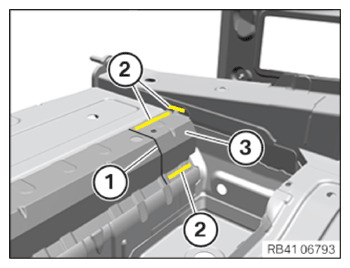

Perform coarse separating cut (1) as shown.
Release welded connections in areas (2) and remove section (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00...
Releasing bonded connections

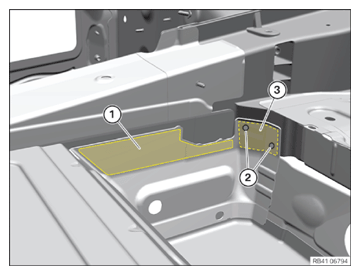

Open welded connections in area (1) .
Undo the self-tapping screws (2) .
Release bonded connection in area (3) .

Courtesy of BMW OF NORTH AMERICA, INC.
Release the self-tapping screw and bonded connection in the area (1) .
Release welded connections in areas (2) .
(3) Remove luggage compartment floor.

Courtesy of BMW OF NORTH AMERICA, INC.
