Installing the tail light on the tailgate on the left and right

Install the tail light on the trunk lid

• Connect and lock the connector (2)  and position the tail light correctly on the tailgate (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

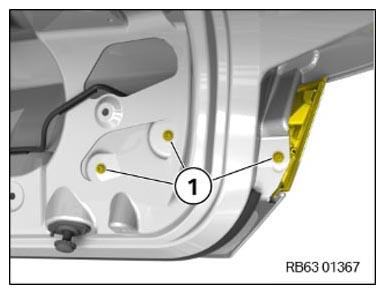

• Replace screws (1)  .

  Parts:  Screws

• Tighten down screws (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE WATER SUPPLY TO THE REAR LEFT AND RIGHT LIGHT .
• Refer to INSTALLING THE TAILGATE TRIM PANEL .
• Refer to ATTACHING THE TRIM PANEL FOR THE TAILGATE HINGE ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE POWER TAILGATE SWITCH .
