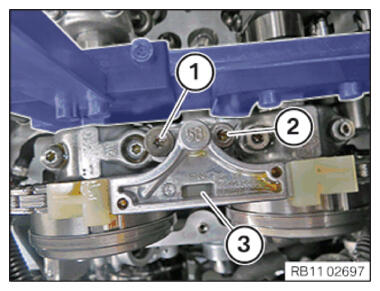

Releasing the slide rail of the upper camshaft cylinders 5 to 8
Releasing the slide rail of the upper camshaft cylinders 5 to 8
Loosen the screws
(1)
and
(2)
of the slide rail
(3)
.
Courtesy of BMW OF NORTH AMERICA, INC.
