Mount the alternator
Precondition
Battery ground leads are disconnected.
- Position the alternator and secure it with all screws.

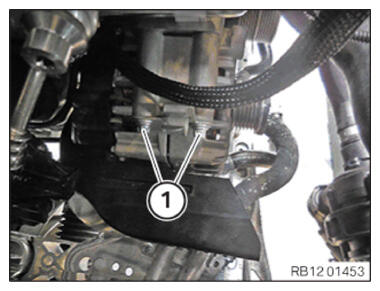

- Tighten the bolts (1) at the top on the alternator.
TIGHTENING TORQUE SPECIFICATIONS
| Alternator to crankcase | ||
|---|---|---|
| M8x80 | Tightening torque | 22 Nm |

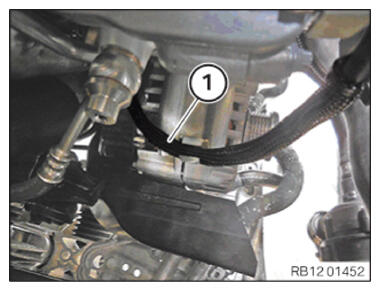

- Secure the positive battery cable (1)
on the holder.

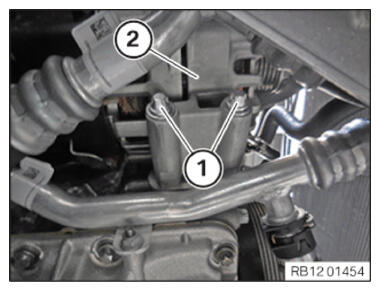

- Tighten the bolts (1) on the bottom of the alternator (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Alternator to crankcase | ||
|---|---|---|
| M8x80 | Tightening torque | 22 Nm |
- Connect positive battery cable to alternator.
- Tighten nut.
TIGHTENING TORQUE SPECIFICATIONS
| Positive battery cable to alternator | ||
|---|---|---|
| M8 | tightening torque | 19 Nm |
- Mount the cover (1) to the nut.

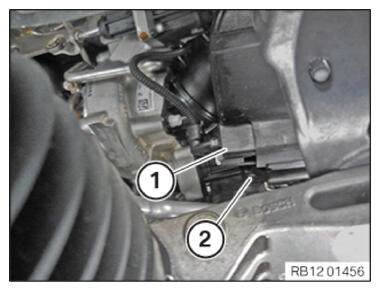

- Connect the connector (1) to the alternator and lock audibly.

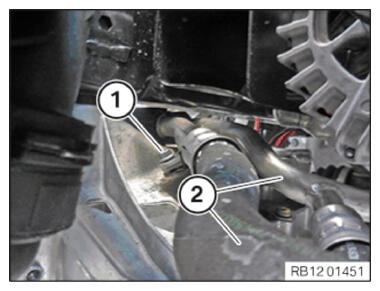

- Mount the engine oil lines (2) on the holder below the alternator.
- Tighten nut (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Engine oil lines to holder | ||
|---|---|---|
| M6 | Tightening torque | 8 Nm |
