Install the trim panel of the tailgate hinge on the left

NOTE: Perform the steps on the right and left side.

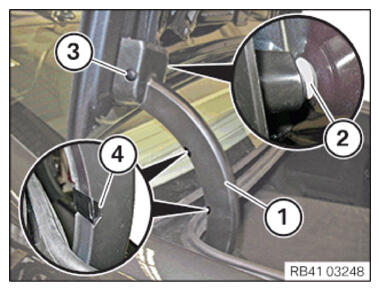

• Position the trim panel of the tailgate hinge (1)  .
• Engage clip (2)  .
• Install expanding rivet (3)  .
• Clip in lugs (4)  .
