Install the roof trim strip on the left and right

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the roof trim strip

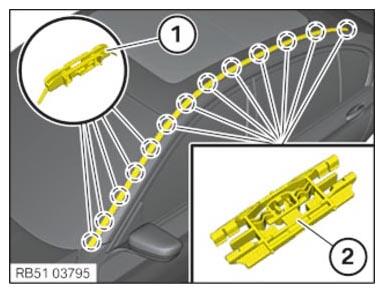

Check the clamps (1) and (2) on the vehicle and replace as needed.
On vehicles with a CFRP roof, the clamps (2) must always be replaced.

Courtesy of BMW OF NORTH AMERICA, INC.

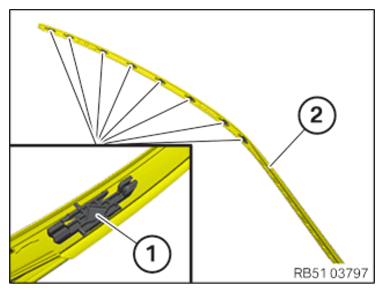

Check the clamps (1) at the roof trim strip (2) and replace as needed.

Courtesy of BMW OF NORTH AMERICA, INC.

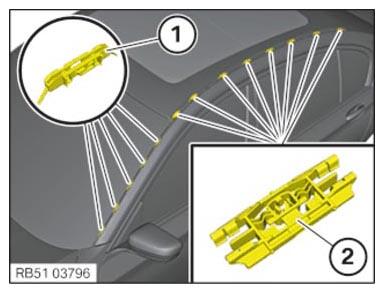

Install the roof trim strip and align it on the roof.
Engage the roof trim strip in the clamps (1) and (2) starting from the front.

Courtesy of BMW OF NORTH AMERICA, INC.
