Remove both sun visors and counter supports
NOTE:
Description is for left component only. Procedure on the right side is identical.

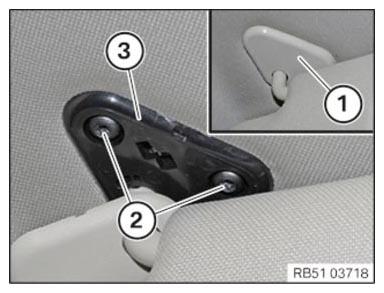

Remove the sun visor and the counter support
- Lever out cover (1) downward.
- Loosen screws (2) .
- Unlock and disconnect sun visor (3)
and disconnect the plug connection.

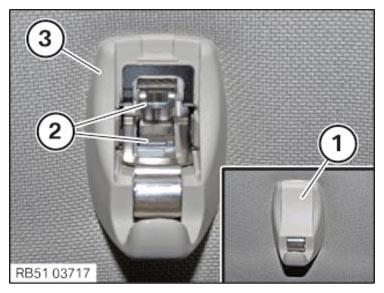

- Lever out locking wedge (1) downward.
- With suitable long-nose pliers, push the release tabs (2) together and remove the counter support (3) .
- Unlock and disconnect the plug connection on the counter support (3) .
