Partly fastening the coolant expansion tank for the low-temperature coolant circuit

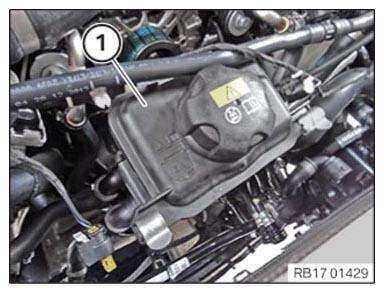

• Feed in the coolant expansion tank (1)  for the low-temperature coolant circuit and position it.

  Courtesy of BMW OF NORTH AMERICA, INC.

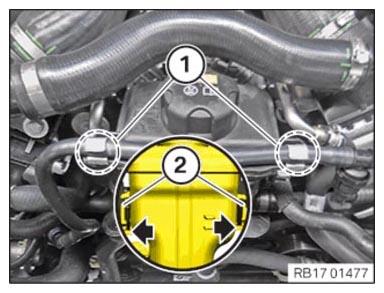

• Clip in the coolant ventilation line (2)  in the clamp in area (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

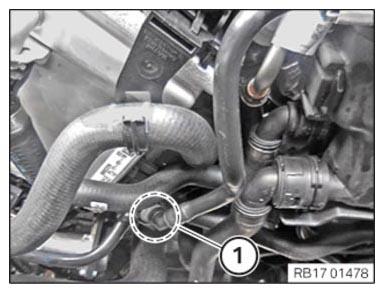

• Connect and lock tank vent line (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

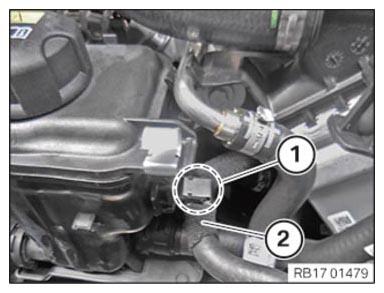

• Engage the clamps (2)  .
• Feed in the tank vent line in area (1)  and position it.

Courtesy of BMW OF NORTH AMERICA, INC.
