Lower the headlining (with sliding/tilting sunroof)

Precondition

Sliding/tilting sunroof is open.

Seat surfaces of the front seats are moved down as far as possible.

Backrests of the front seats are folded back as far as possible.

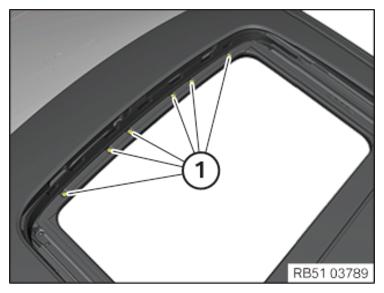

• Loosen screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

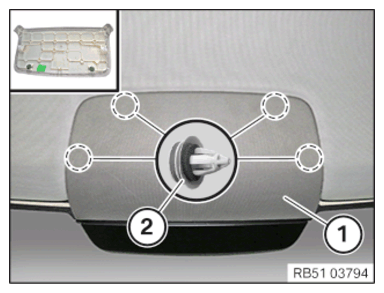

• Unclip panel down (1) from the clips (2) and remove it.

  Courtesy of BMW OF NORTH AMERICA, INC.

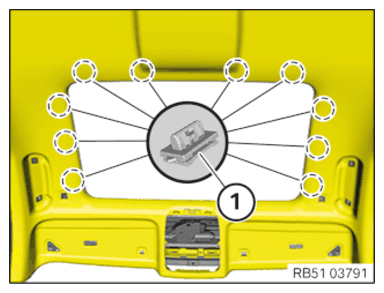

• Release headlining from the clips (1) with special tool 0 496 569 (00 9 325) .

  Courtesy of BMW OF NORTH AMERICA, INC.

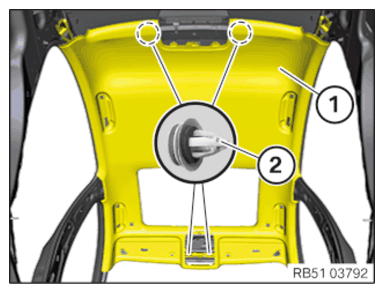

• Release headlining (1) with special tool from the clip (2) with the aid of a support person.
• Guide out the headlining (1) on the respective edge protection and place it onto the seats.

Courtesy of BMW OF NORTH AMERICA, INC.
