Install the headlining (with sliding/tilting sunroof)

Precondition

Sliding/tilting sunroof is open.

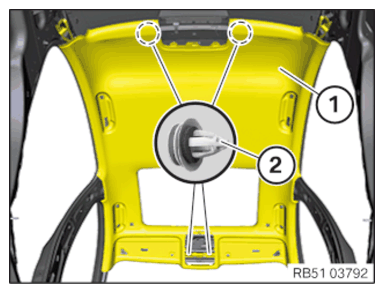

• Check clips (2) and replace if necessary.

  The clips must not be damaged or missing.

• Mount headlining (1) with a support person and clip into the clips (2). Ensure a correct fit in the process.
• Feed in the headlining (1) on the relative edge protection.

  Courtesy of BMW OF NORTH AMERICA, INC.

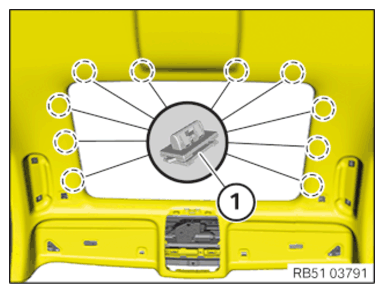

• Check clips (1) and replace if necessary.

  The clips must not be damaged or missing.

  Clip the headlining in the clips (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

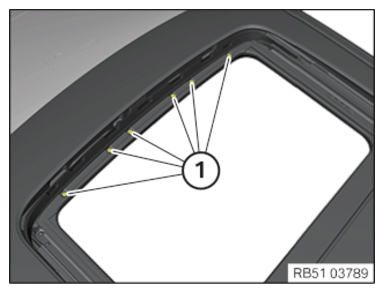

• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Headlining
  tightening torque	1.4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

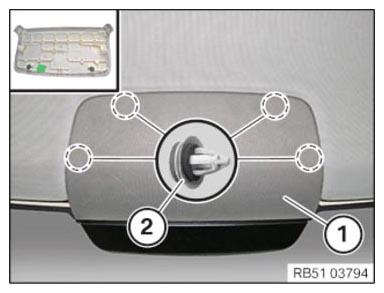

• Install trim (1) and clip into the clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.
