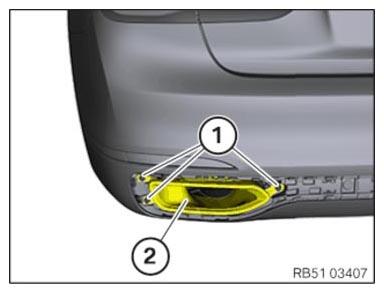

Install both trim pieces for the exhaust tailpipe

NOTE: Description is for left component only. Procedure on the right side is identical.

• Install the trim for the exhaust tailpipe (2)  .
• Tighten the screws (1)  .

TIGHTENING TORQUES SPECIFICATION

Exhaust cover on guide
Hexagon screw	Tightening torque	2.7 Nm
